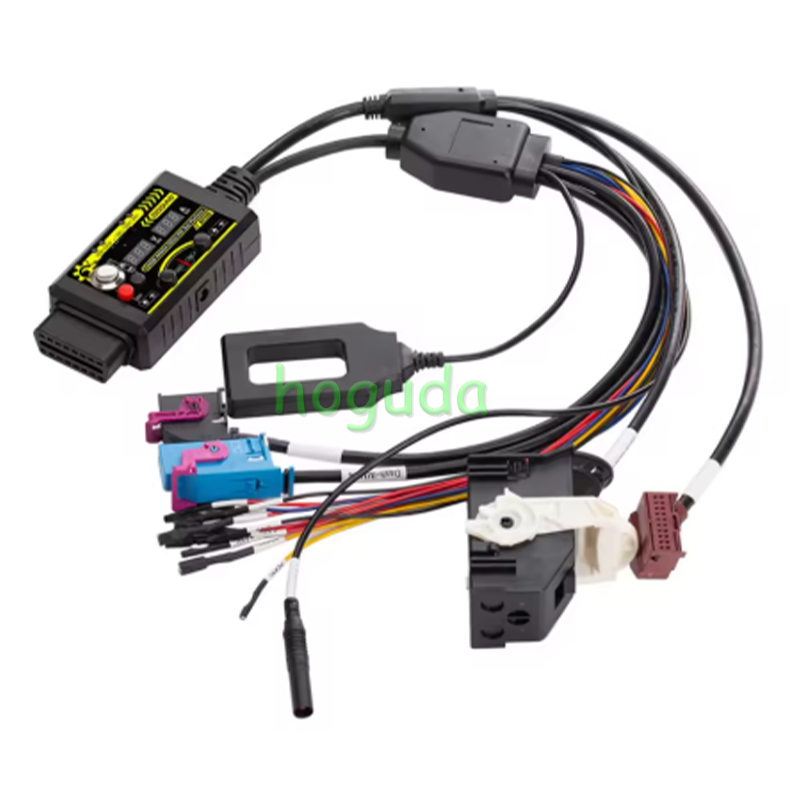

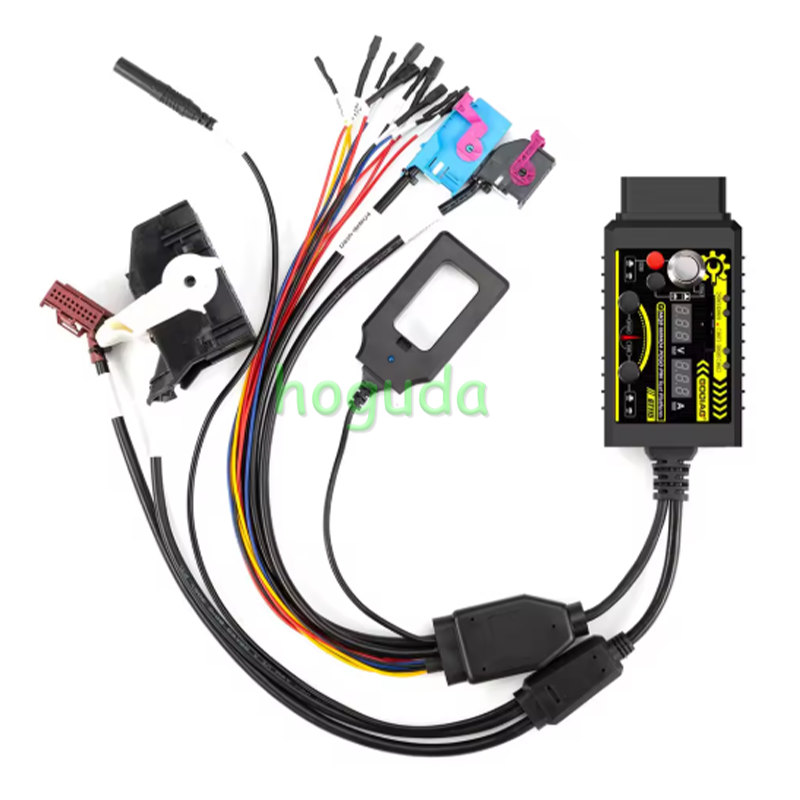

GODIAG GT115 For VAG MQB IMMO4 CAN-Bus UDS 4th Generation IMMO System Test Platform with POGO PIN to Read & Write Data

Name: GODIAG GT115 For VAG MQB IMMO4 CAN-Bus UDS 4th Generation IMMO System Test Platform with POGO PIN to Read & Write Data
Brand: Hoguda Technology Co., Ltd.
SKU: GODIAG-30
Price: 77 USD
Availability: InStock

Item Number:GODIAG-30

SKU: GODIAG-30

$77.00

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites (0)

Description

GODIAG GT115 For VAG MQB IMMO4 CAN-Bus UDS 4th Generation IMMO System Test Platform with POGO PIN to Read & Write Data
Product Functions:
1. Synchronous detection of key and vehicle IMMO module
2. Independent diagnosis of engine and power expansion module.
3. Communication diagnosis and programming test of engine module and power module through gateway module
4. IMMO 4th generation POGO PIN read and write data and key synchronization detection
5. Connect BCM module with gateway module for communication diagnosis and programming test(Note: Press the corresponding switch when required.)
6. Gateway module detection
7. Current connected power supply voltage display
8. Current connected module current display
9. 2032 battery voltage detection.
10. With POGO PIN to read and write data to the dashboard.

How to Use POGO PIN?
1. Connect the power supply [Note: the power switch must be off].
2. Press the IGN ignition power [the IGN ignition switch must be turned on].
3. Connect the instrument plug.
4. Find the POGO PIN connection point of the corresponding instrument and connect it with a probe.
5. Turn on the power switch for 3-5 seconds. If the ABS light flashes, you've successfully entered POGO PIN read/write mode.
